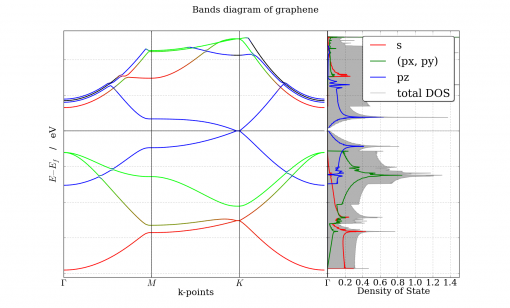

This article presents a python source code in order to plot the bands diagram of graphene calculated using VASP. The plot is done using pymatgen library and RGB coloring adapted from this example. Here is the output obtained with the script :

On the band diagram, the contribution of s, (px,py) and pz atomic orbital is map on a RGB scale. Red is associated to a s contribution, green to (px, py) contribution and blue to pz contribution. The same function or procedure can be used to map atomic contributions on the band diagram.
At the end of the article you can find a tarball containing all VASP input/ouput files and the python source code. This calculation is not accurate and is used only for band diagram plotting illustration. For example, you can see a short gap on the DOS which does not exist.
Edit 2016, March 15, update : source code is now python3 and pymatgen version 3.3.5 compatible. You can find the below scripts in an up to date version on github : bandstructureplots
#!/usr/bin/env python # -*- coding=utf-8 -*- import sys import numpy as np from numpy import array as npa import matplotlib.pyplot as plt from matplotlib.collections import LineCollection from matplotlib.gridspec import GridSpec import pymatgen as mg from pymatgen.io.vasp.outputs import Vasprun, Procar from pymatgen.symmetry.bandstructure import HighSymmKpath from pymatgen.electronic_structure.core import Spin, Orbital def rgbline(ax, k, e, red, green, blue, alpha=1.): # creation of segments based on # http://nbviewer.ipython.org/urls/raw.github.com/dpsanders/matplotlib-examples/master/colorline.ipynb pts = np.array([k, e]).T.reshape(-1, 1, 2) seg = np.concatenate([pts[:-1], pts[1:]], axis=1) nseg = len(k) - 1 r = [0.5 * (red[i] + red[i + 1]) for i in range(nseg)] g = [0.5 * (green[i] + green[i + 1]) for i in range(nseg)] b = [0.5 * (blue[i] + blue[i + 1]) for i in range(nseg)] a = np.ones(nseg, np.float) * alpha lc = LineCollection(seg, colors=list(zip(r, g, b, a)), linewidth=2) ax.add_collection(lc) if __name__ == "__main__": # read data # --------- # kpoints labels path = HighSymmKpath(mg.Structure.from_file("./opt/CONTCAR")).kpath["path"] labels = [r"$%s$" % lab for lab in path[0][0:4]] # bands bands = Vasprun("./bands/vasprun.xml").get_band_structure("./bands/KPOINTS", line_mode=True) # projected bands data = Procar("./bands/PROCAR").data # density of state dosrun = Vasprun("./dos/vasprun.xml") # set up matplotlib plot # ---------------------- # general options for plot font = {'family': 'serif', 'size': 24} plt.rc('font', **font) # set up 2 graph with aspec ration 2/1 # plot 1: bands diagram # plot 2: Density of State gs = GridSpec(1, 2, width_ratios=[2, 1]) fig = plt.figure(figsize=(11.69, 8.27)) fig.suptitle("Bands diagram of graphene") ax1 = plt.subplot(gs[0]) ax2 = plt.subplot(gs[1]) # , sharey=ax1) # set ylim for the plot # --------------------- emin = 1e100 emax = -1e100 for spin in bands.bands.keys(): for b in range(bands.nb_bands): emin = min(emin, min(bands.bands[spin][b])) emax = max(emax, max(bands.bands[spin][b])) emin -= bands.efermi + 1 emax -= bands.efermi - 1 ax1.set_ylim(emin, emax) ax2.set_ylim(emin, emax) # Band Diagram # ------------ # sum up contribution over carbon atoms data = data[Spin.up].sum(axis=2) # sum up px and py contributions and normalize contributions contrib = np.zeros((bands.nb_bands, len(bands.kpoints), 3)) for b in range(bands.nb_bands): for k in range(len(bands.kpoints)): sc = data[k][b][Orbital.s.value]**2 pxpyc = data[k][b][Orbital.px.value]**2 + \ data[k][b][Orbital.py.value]**2 pzc = data[k][b][Orbital.pz.value]**2 tot = sc + pxpyc + pzc if tot != 0.0: contrib[b, k, 0] = sc / tot contrib[b, k, 1] = pxpyc / tot contrib[b, k, 2] = pzc / tot # plot bands using rgb mapping for b in range(bands.nb_bands): rgbline(ax1, range(len(bands.kpoints)), [e - bands.efermi for e in bands.bands[Spin.up][b]], contrib[b, :, 0], contrib[b, :, 1], contrib[b, :, 2]) # style ax1.set_xlabel("k-points") ax1.set_ylabel(r"$E - E_f$ / eV") ax1.grid() # fermi level at 0 ax1.hlines(y=0, xmin=0, xmax=len(bands.kpoints), color="k", lw=2) # labels nlabs = len(labels) step = len(bands.kpoints) / (nlabs - 1) for i, lab in enumerate(labels): ax1.vlines(i * step, emin, emax, "k") ax1.set_xticks([i * step for i in range(nlabs)]) ax1.set_xticklabels(labels) ax1.set_xlim(0, len(bands.kpoints)) # Density of state # ---------------- ax2.set_yticklabels([]) ax2.grid() ax2.set_xticks(np.arange(0, 1.5, 0.4)) ax2.set_xticklabels(np.arange(0, 1.5, 0.4)) ax2.set_xlim(1e-6, 1.5) ax2.hlines(y=0, xmin=0, xmax=1.5, color="k", lw=2) ax2.set_xlabel("Density of State") # s contribution ax2.plot(npa(dosrun.pdos[0][Orbital.s][Spin.up]) + npa(dosrun.pdos[1][Orbital.s][Spin.up]), dosrun.tdos.energies - dosrun.efermi, "r-", label="s", linewidth=2) # px py contribution ax2.plot(npa(dosrun.pdos[0][Orbital.px][Spin.up]) + npa(dosrun.pdos[1][Orbital.px][Spin.up]) + npa(dosrun.pdos[0][Orbital.py][Spin.up]) + npa(dosrun.pdos[1][Orbital.py][Spin.up]), dosrun.tdos.energies - dosrun.efermi, "g-", label="(px, py)", linewidth=2) # pz contribution ax2.plot(npa(dosrun.pdos[0][Orbital.pz][Spin.up]) + npa(dosrun.pdos[1][Orbital.pz][Spin.up]), dosrun.tdos.energies - dosrun.efermi, "b-", label="pz", linewidth=2) # total dos ax2.fill_between(dosrun.tdos.densities[Spin.up], 0, dosrun.tdos.energies - dosrun.efermi, color=(0.7, 0.7, 0.7), facecolor=(0.7, 0.7, 0.7)) ax2.plot(dosrun.tdos.densities[Spin.up], dosrun.tdos.energies - dosrun.efermi, color=(0.6, 0.6, 0.6), label="total DOS") # plot format style # ----------------- ax2.legend(fancybox=True, shadow=True, prop={'size': 18}) plt.subplots_adjust(wspace=0) # plt.show() plt.savefig(sys.argv[0].strip(".py") + ".pdf", format="pdf") |
Hereafter there are two more examples for Cu and Si. The script may be simpler as all data can be extracted using pymatgen methods.
